Generating Noise

audiotoolbox provides multiple functions to generate noise. This example adds white, pink, and brown Gaussian noise to a signal and plots their spectrograms. The noise variance and a seed for the random number generator can be defined by passing the respective arguments (see audiotoolbox.Signal.add_noise()).

import audiotoolbox as audio
import matplotlib.pyplot as plt

white_noise = audio.Signal(1, 1, 48000).add_noise()
pink_noise = audio.Signal(1, 1, 48000).add_noise(ntype='pink')
brown_noise = audio.Signal(1, 1, 48000).add_noise(ntype='brown')

wspec, fc = white_noise.time_frequency.octave_band_specgram(oct_fraction=3)
pspec, fc = pink_noise.time_frequency.octave_band_specgram(oct_fraction=3)
bspec, fc = brown_noise.time_frequency.octave_band_specgram(oct_fraction=3)

norm = plt.Normalize(
    vmin=min([wspec.min(), pspec.min(), bspec.min()]),
    vmax=max([wspec.max(), pspec.max(), bspec.max()])
)
fig, ax = plt.subplots(2, 2, sharex='all', sharey='all', figsize=(8, 8))
ax[0, 0].set_title('White Noise')
ax[0, 0].pcolormesh(wspec.time, fc, wspec.T, norm=norm)
ax[0, 1].set_title('Pink Noise')
ax[0, 1].pcolormesh(pspec.time, fc, pspec.T, norm=norm)
ax[1, 0].set_title('Brown Noise')
ax[1, 0].pcolormesh(bspec.time, fc, bspec.T, norm=norm)

ax[1, 0].set_xlabel("Time / s")
for a in ax[:, 0]:
    a.set_ylabel('Frequency / Hz')

for a in ax.flatten():
    a.set_yscale('log')
ax[1, 1].set_visible(False)
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

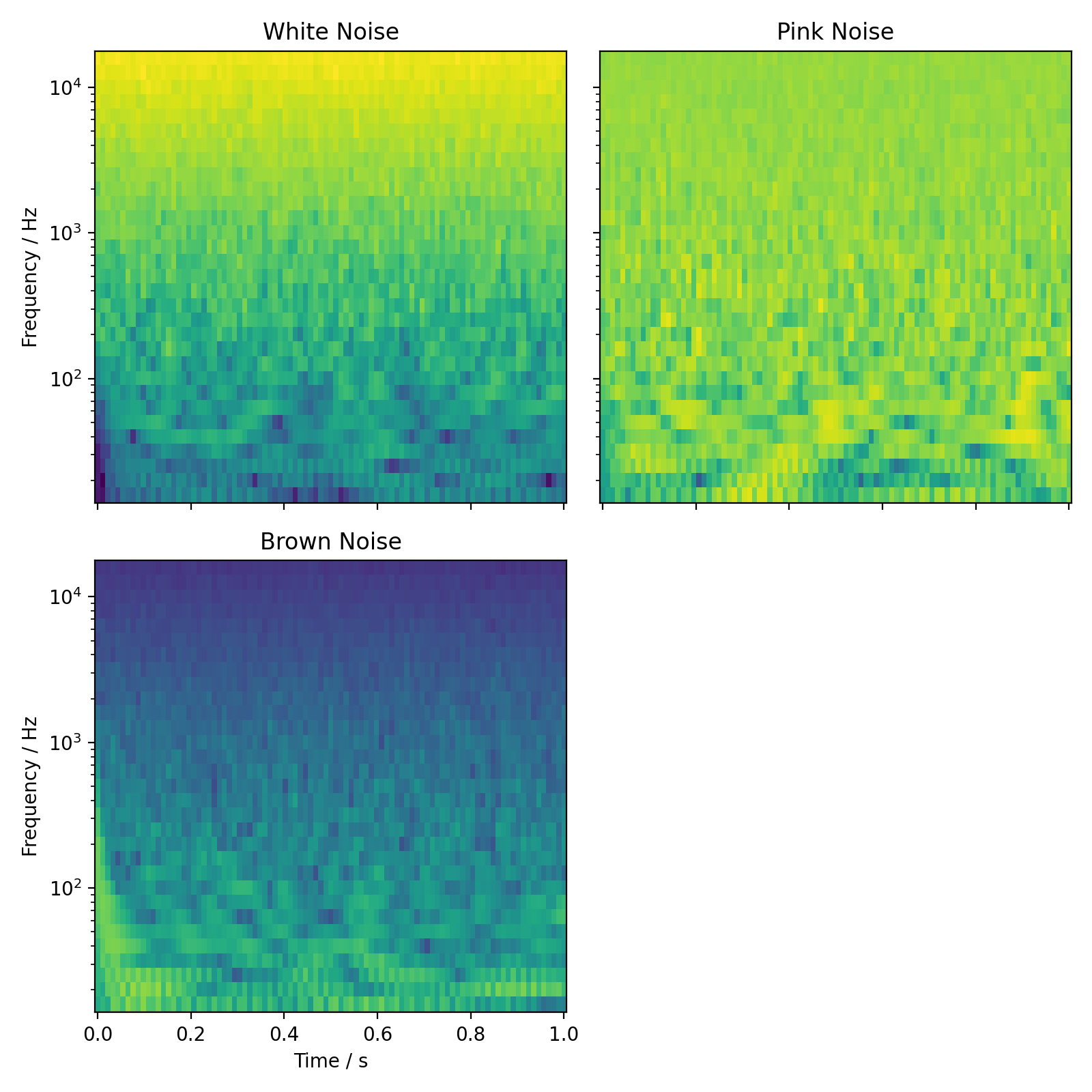

../_images/noise-1.png

Uncorrelated noise can be generated using the audiotoolbox.Signal.add_uncorr_noise() method. This uses the Gram-Schmidt process to orthogonalize noise tokens to minimize variance in the created correlation:

>>> noise = audio.Signal(3, 1, 48000).add_uncorr_noise(corr=0.2, ntype='white')
>>> np.cov(noise.T)
array([[1.00002083, 0.20000417, 0.20000417],
       [0.20000417, 1.00002083, 0.20000417],
       [0.20000417, 0.20000417, 1.00002083]])

There is also an option to create band-limited, partly-correlated, or uncorrelated noise by defining low-, high-, or band-pass filters that are applied before the Gram-Schmidt process. For more details, please refer to the documentation of audiotoolbox.Signal.add_uncorr_noise().
