User Guide

This user guide is intended to give a quick overview of the main features of audiotoolbox, as well as how to use them. For more details, please see the Reference Manual.

Working with Stimuli in the Time Domain

audiotoolbox uses the audiotoolbox.Signal class to represent stimuli in the time domain. This class provides an easy-to-use method for modifying and analyzing signals.

Creating Signals

An empty, 1-second long signal with two channels at 48 kHz is initialized by calling:

>>> import audiotoolbox as audio
>>> import numpy as np
>>>
>>> signal = audio.Signal(n_channels=2, duration=1, fs=48000)

audiotoolbox supports an unlimited number of channels, which can also be arranged across multiple dimensions. For example:

>>> signal = audio.Signal(n_channels=(2, 3), duration=1, fs=48000)

By default, modifications are applied to all channels simultaneously. The following two lines add 1 to all samples in all channels:

>>> signal = audio.Signal(n_channels=2, duration=1, fs=48000)
>>> signal += 1

Individual channels can be addressed easily using the audiotoolbox.Signal.ch indexer:

>>> signal = audio.Signal(n_channels=(2, 3), duration=1, fs=48000)
>>> signal.ch[0] += 1

This will add 1 only to the first channel group. The ch indexer also allows for slicing:

>>> signal = audio.Signal(n_channels=3, duration=1, fs=48000)
>>> signal.ch[1:] += 1

This will add 1 to all but the first channel. Internally, the audiotoolbox.Signal class is a numpy.ndarray where the first dimension is the time axis (number of samples). The subsequent dimensions define the channels:

>>> signal = audio.Signal(n_channels=(2, 3), duration=1, fs=48000)
>>> signal.shape
(48000, 2, 3)

The number of samples and the number of channels can be accessed through properties of the audiotoolbox.Signal class:

>>> signal = audio.Signal(n_channels=(2, 3), duration=1, fs=48000)
>>> print(f'No. of samples: {signal.n_samples}, No. of channels: {signal.n_channels}')
No. of samples: 48000, No. of channels: (2, 3)

The time axis can be accessed directly using the audiotoolbox.Signal.time property:

>>> signal = audio.Signal(n_channels=1, duration=1, fs=48000)
>>> signal.time
array([0.00000000e+00, 2.08333333e-05, 4.16666667e-05, ...,
       9.99937500e-01, 9.99958333e-01, 9.99979167e-01])

It’s important to understand that all modifications are in-place, meaning that calling a method does not return a changed copy of the signal but directly changes the signal’s data:

>>> signal = audio.Signal(n_channels=1, duration=1, fs=48000)
>>> signal.add_tone(frequency=500)
>>> signal.var()
0.49999999999999994

Creating a copy of a Signal requires the explicit use of the audiotoolbox.Signal.copy() method. The audiotoolbox.Signal.copy_empty() method can be used to create an empty copy with the same shape as the original:

>>> signal = audio.Signal(n_channels=1, duration=1, fs=48000)
>>> signal2 = signal.copy_empty()

Basic Signal Modifications

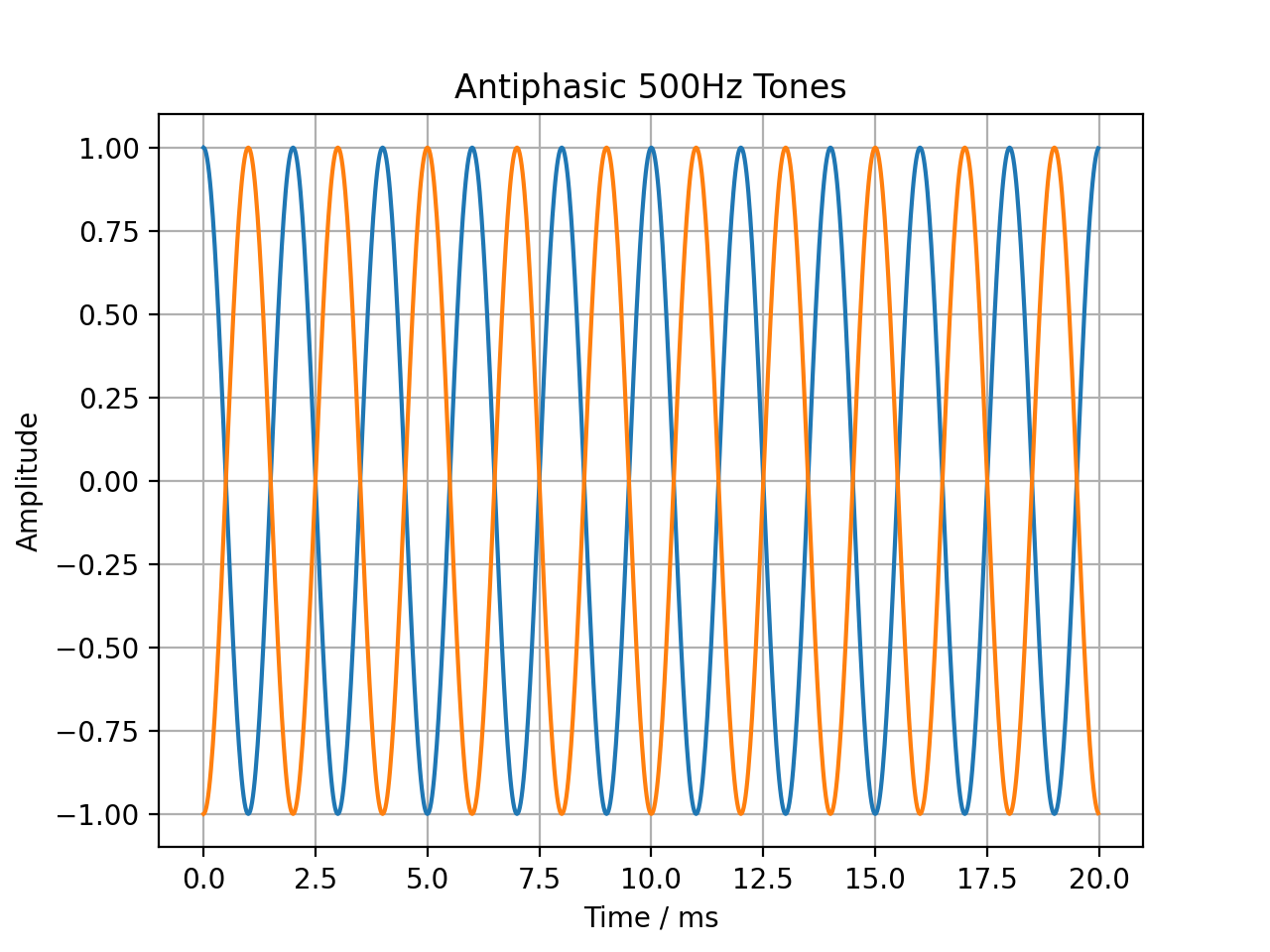

Basic signal modifications, such as adding a tone or noise, are directly available as methods. Tones are easily added through the audiotoolbox.Signal.add_tone() method. A signal with two antiphasic 500 Hz tones in its two channels is created by running:

import audiotoolbox as audio
import numpy as np
import matplotlib.pyplot as plt

sig = audio.Signal(n_channels=2, duration=20e-3, fs=48000)
sig.ch[0].add_tone(frequency=500, amplitude=1, start_phase=0)
sig.ch[1].add_tone(frequency=500, amplitude=1, start_phase=np.pi)

plt.plot(sig.time * 1e3, sig)
plt.xlabel('Time / ms')
plt.ylabel('Amplitude')
plt.title('Antiphasic 500Hz Tones')
plt.grid(True)
plt.show()

(Source code, png, hires.png, pdf)

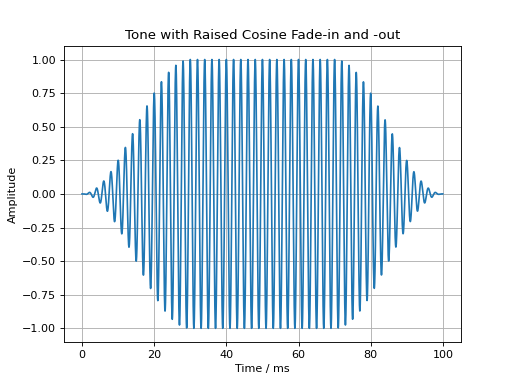

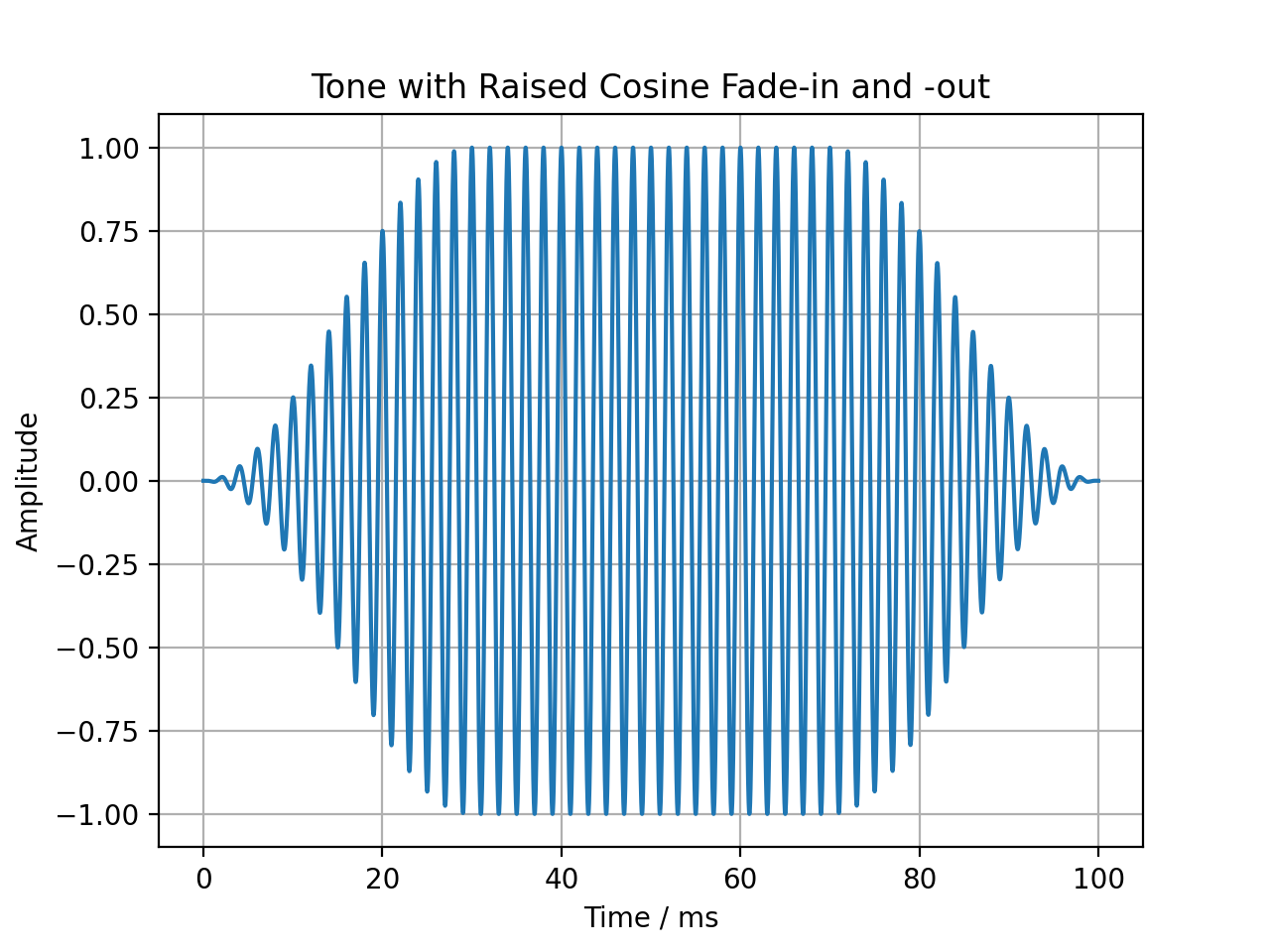

Fade-in and fade-out ramps with different shapes can be applied using the audiotoolbox.Signal.add_fade_window() method:

import audiotoolbox as audio
import matplotlib.pyplot as plt

sig = audio.Signal(n_channels=1, duration=100e-3, fs=48000)
sig.add_tone(frequency=500, amplitude=1, start_phase=0)
sig.add_fade_window(rise_time=30e-3, type='cos')

plt.plot(sig.time * 1e3, sig)
plt.xlabel('Time / ms')
plt.ylabel('Amplitude')
plt.title('Tone with Raised Cosine Fade-in and -out')
plt.grid(True)
plt.show()

(Source code, png, hires.png, pdf)

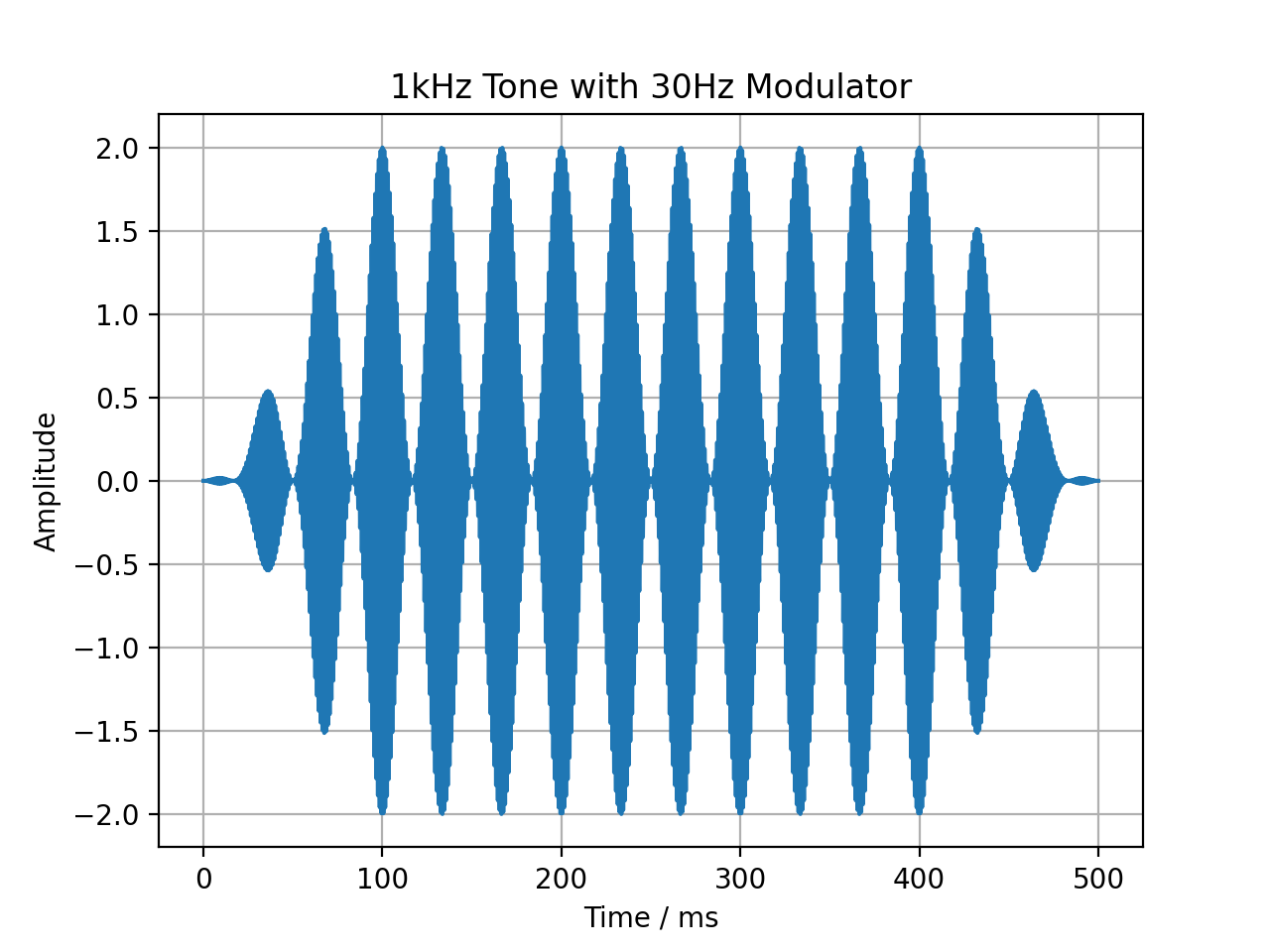

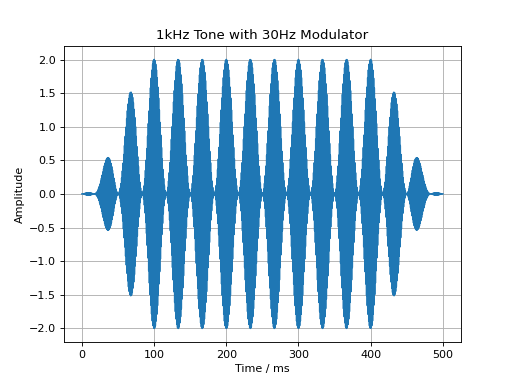

Similarly, a cosine modulator can be added through the audiotoolbox.Signal.add_cos_modulator() method:

import audiotoolbox as audio
import matplotlib.pyplot as plt

sig = audio.Signal(n_channels=1, duration=500e-3, fs=48000)
sig.add_tone(1000)
sig.add_cos_modulator(frequency=30, m=1)
sig.add_fade_window(100e-3)

plt.plot(sig.time * 1e3, sig)
plt.xlabel('Time / ms')
plt.ylabel('Amplitude')
plt.title('1kHz Tone with 30Hz Modulator')
plt.grid(True)
plt.show()

(Source code, png, hires.png, pdf)

Generating Noise

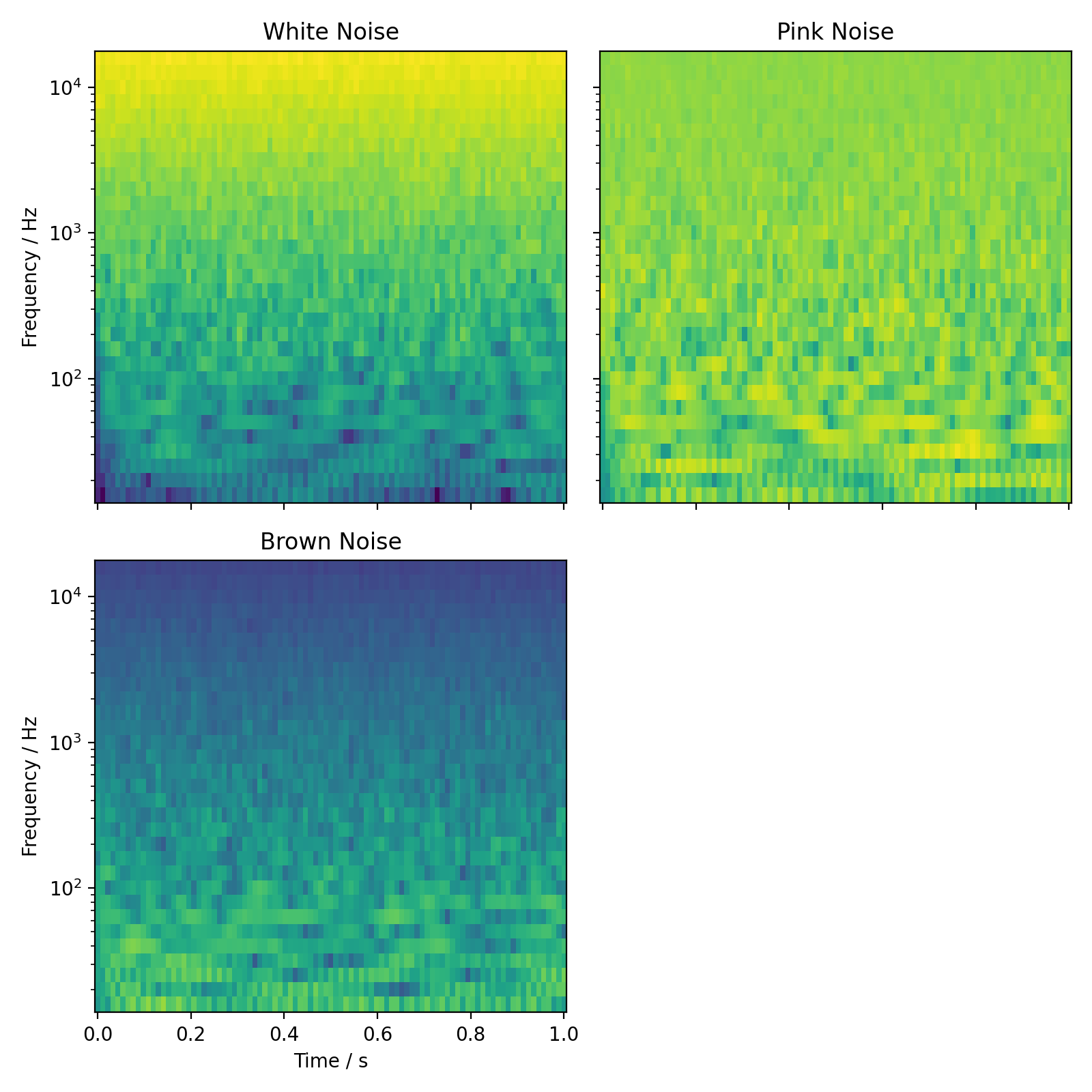

audiotoolbox provides multiple functions to generate noise. This example adds white, pink, and brown Gaussian noise to a signal and plots their spectrograms. The noise variance and a seed for the random number generator can be defined by passing the respective arguments (see audiotoolbox.Signal.add_noise()).

import audiotoolbox as audio
import matplotlib.pyplot as plt

white_noise = audio.Signal(1, 1, 48000).add_noise()
pink_noise = audio.Signal(1, 1, 48000).add_noise(ntype='pink')
brown_noise = audio.Signal(1, 1, 48000).add_noise(ntype='brown')

wspec, fc = white_noise.time_frequency.octave_band_specgram(oct_fraction=3)
pspec, fc = pink_noise.time_frequency.octave_band_specgram(oct_fraction=3)
bspec, fc = brown_noise.time_frequency.octave_band_specgram(oct_fraction=3)

norm = plt.Normalize(
    vmin=min([wspec.min(), pspec.min(), bspec.min()]),
    vmax=max([wspec.max(), pspec.max(), bspec.max()])
)
fig, ax = plt.subplots(2, 2, sharex='all', sharey='all', figsize=(8, 8))
ax[0, 0].set_title('White Noise')
ax[0, 0].pcolormesh(wspec.time, fc, wspec.T, norm=norm)
ax[0, 1].set_title('Pink Noise')
ax[0, 1].pcolormesh(pspec.time, fc, pspec.T, norm=norm)
ax[1, 0].set_title('Brown Noise')
ax[1, 0].pcolormesh(bspec.time, fc, bspec.T, norm=norm)

ax[1, 0].set_xlabel("Time / s")
for a in ax[:, 0]:
    a.set_ylabel('Frequency / Hz')

for a in ax.flatten():
    a.set_yscale('log')
ax[1, 1].set_visible(False)
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

Uncorrelated noise can be generated using the audiotoolbox.Signal.add_uncorr_noise() method. This uses the Gram-Schmidt process to orthogonalize noise tokens to minimize variance in the created correlation:

>>> noise = audio.Signal(3, 1, 48000).add_uncorr_noise(corr=0.2, ntype='white')
>>> np.cov(noise.T)
array([[1.00002083, 0.20000417, 0.20000417],
       [0.20000417, 1.00002083, 0.20000417],
       [0.20000417, 0.20000417, 1.00002083]])

There is also an option to create band-limited, partly-correlated, or uncorrelated noise by defining low-, high-, or band-pass filters that are applied before the Gram-Schmidt process. For more details, please refer to the documentation of audiotoolbox.Signal.add_uncorr_noise().

Playback

The audiotoolbox.Signal.play() method can be used to quickly listen to the signal using the default device.

>>> sig = audio.Signal(1, 1, 48000).add_tone(500).add_fade_window(30e-3)
>>> sig.play()

Resampling

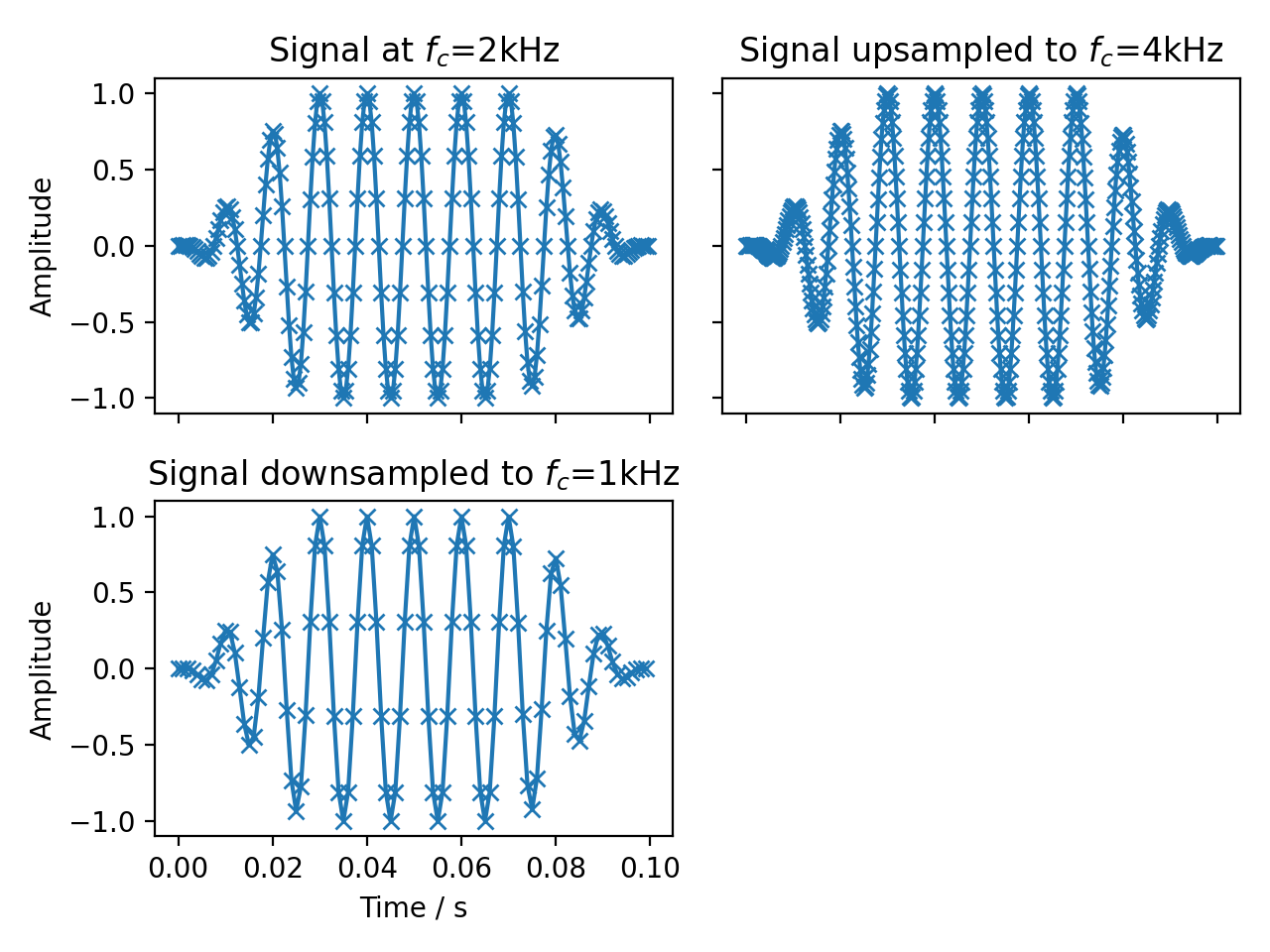

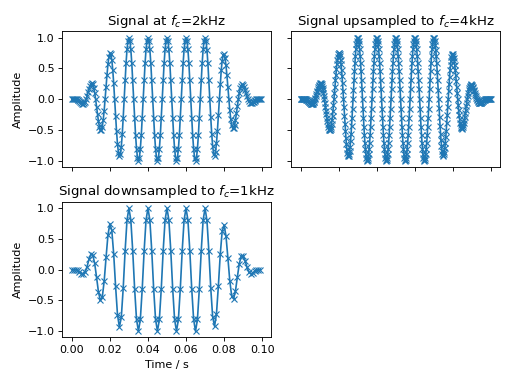

Resampling is done using the audiotoolbox.Signal.resample() method.

fig, ax = plt.subplots(2, 2, sharex='all', sharey='all')
sig = audio.Signal(1, 100e-3, fs=2000).add_tone(100).add_fade_window(30e-3)
ax[0, 0].plot(sig.time, sig, 'x-')
ax[0, 0].set_title('Signal at $f_c$=2kHz')
sig.resample(4000)
ax[0, 1].plot(sig.time, sig, 'x-')
ax[0, 1].set_title('Signal upsampled to $f_c$=4kHz')
sig.resample(1000)
ax[1, 0].plot(sig.time, sig, 'x-')
ax[1, 0].set_title('Signal downsampled to $f_c$=1kHz')
ax[1, 1].set_visible(False)
ax[1, 0].set_xlabel("Time / s")
ax[0, 0].set_ylabel("Amplitude")
ax[1, 0].set_ylabel("Amplitude")
fig.tight_layout()
fig.show()

(Source code, png, hires.png, pdf)

Trimming Signals

The audiotoolbox.Signal.trim() method can be used to shorten a signal by “trimming” it to a specified start and end time. This is useful for extracting a segment of interest from a longer signal. The method modifies the signal in-place.

For example, to extract the segment between 0.2 and 0.8 seconds from a 1-second signal:

>>> import audiotoolbox as audio
>>> # Create a 1-second noise signal
>>> signal = audio.Signal(1, 1, 48000).add_noise()
>>> print(f'Original duration: {signal.duration:.2f}s')
Original duration: 1.00s
>>>
>>> # Trim the signal to the segment between 0.2s and 0.8s
>>> signal.trim(0.2, 0.8)
>>> print(f'New duration: {signal.duration:.2f}s')
New duration: 0.60s

You can also specify only a start time to trim the beginning of the signal, or use negative values to trim from the end.

>>> # Create another 1-second signal
>>> signal = audio.Signal(1, 1, 48000).add_noise()
>>>
>>> # Trim the first 200ms
>>> signal.trim(0.2)
>>> print(f'Duration after trimming start: {signal.duration:.2f}s')
Duration after trimming start: 0.80s
>>>
>>> # Trim the last 100ms of the remaining signal
>>> signal.trim(0, -0.1)
>>> print(f'Duration after trimming end: {signal.duration:.2f}s')
Duration after trimming end: 0.70s

Convolution

Signals can be convolved with a kernel, which is itself another audiotoolbox.Signal. This is commonly used for filtering or to apply an impulse response to a signal (e.g., a Room Impulse Response or a Head-Related Impulse Response). The toolbox uses the fast, FFT-based convolution from scipy.signal.fftconvolve.

The audiotoolbox.Signal.convolve() method performs this operation. Its behavior with multi-dimensional signals can be controlled with the overlap_dimensions keyword.

Channel-Wise Convolution

By default, convolution is performed only along overlapping dimensions between the signal and the kernel (overlap_dimensions=True). This means that if the channel shapes match, the first channel of the signal is convolved with the first channel of the kernel, the second with the second, and so on.

This is useful for applying multi-channel impulse responses to a multi-channel signal. For example, to simulate a stereo audio signal being played in a room, you could convolve the 2-channel signal with a 2-channel Room Impulse Response (RIR).

>>> # Assume 'stereo_signal.wav' is a 2-channel audio file
>>> signal = audio.Signal('stereo_signal.wav')
>>>
>>> # Assume 'stereo_rir.wav' is a 2-channel impulse response
>>> rir = audio.Signal('stereo_rir.wav')
>>>
>>> # Convolve the signal with the RIR
>>> signal.convolve(rir)
>>>
>>> # The resulting signal is still 2 channels
>>> signal.n_channels
2

Full Multi-Channel Convolution

If you need to convolve every channel of the signal with every channel of the kernel, you can set overlap_dimensions=False.

In this case, convolving a two-channel signal with a two-channel kernel will result in a (2, 2)-shaped channel output, where each element represents one of the possible signal-kernel convolution pairs.

>>> signal = audio.Signal(n_channels=2, duration=1, fs=48000)
>>> kernel = audio.Signal(n_channels=2, duration=100e-3, fs=48000)
>>> signal.convolve(kernel, overlap_dimensions=False)
>>> signal.n_channels
(2, 2)

Convolution Mode

The mode parameter (one of {'full', 'valid', 'same'}) controls the size of the output signal, corresponding directly to the mode argument in scipy.signal.fftconvolve. The default is 'full'.

Signal Statistics and Levels

Some basic signal statistics are accessible through the audiotoolbox.Signal.stats property. This includes the mean and variance of the channels, calculated per channel. The library also provides convenient methods for level calculations in various units.

Let’s create a pink noise signal and explore its properties:

>>> import audiotoolbox as audio
>>> import numpy as np
>>>
>>> noise = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise('pink')

Basic Statistics

The mean and var (variance) are returned as Signal objects, with one value per channel.

>>> # Get basic statistics
>>> print(f"Mean: {noise.stats.mean}")
Mean: Signal([-2.4e-17, -2.4e-17])
>>>
>>> print(f"Variance: {noise.stats.var}")
Variance: Signal([1., 1.])

Level in dB

The library provides properties to get the level in dB Full Scale (dBFS) and Sound Pressure Level (SPL), assuming the signal values represent pressure in Pascals. Frequency-weighted levels (A- and C-weighting) are also available.

>>> # Get level in dB Full Scale (dBFS)
>>> print(f"Level in dBFS: {noise.stats.dbfs}")
Level in dBFS: Signal([3.01, 3.01])
>>>
>>> # Get A-weighted and C-weighted levels
>>> print(f"A-weighted SPL: {noise.stats.dba}")
A-weighted SPL: Signal([89.10, 89.10])
>>>
>>> print(f"C-weighted SPL: {noise.stats.dbc}")
C-weighted SPL: Signal([90.82, 90.82])

You can also normalize a signal to a target Sound Pressure Level (SPL) using the audiotoolbox.Signal.set_dbspl() method.

>>> # Normalize the signal to 70 dB SPL
>>> noise.set_dbspl(70)
>>>
>>> # The stats.dbspl property will now reflect this level
>>> noise.stats.dbspl
Signal([70., 70.])

Octave-Band Levels

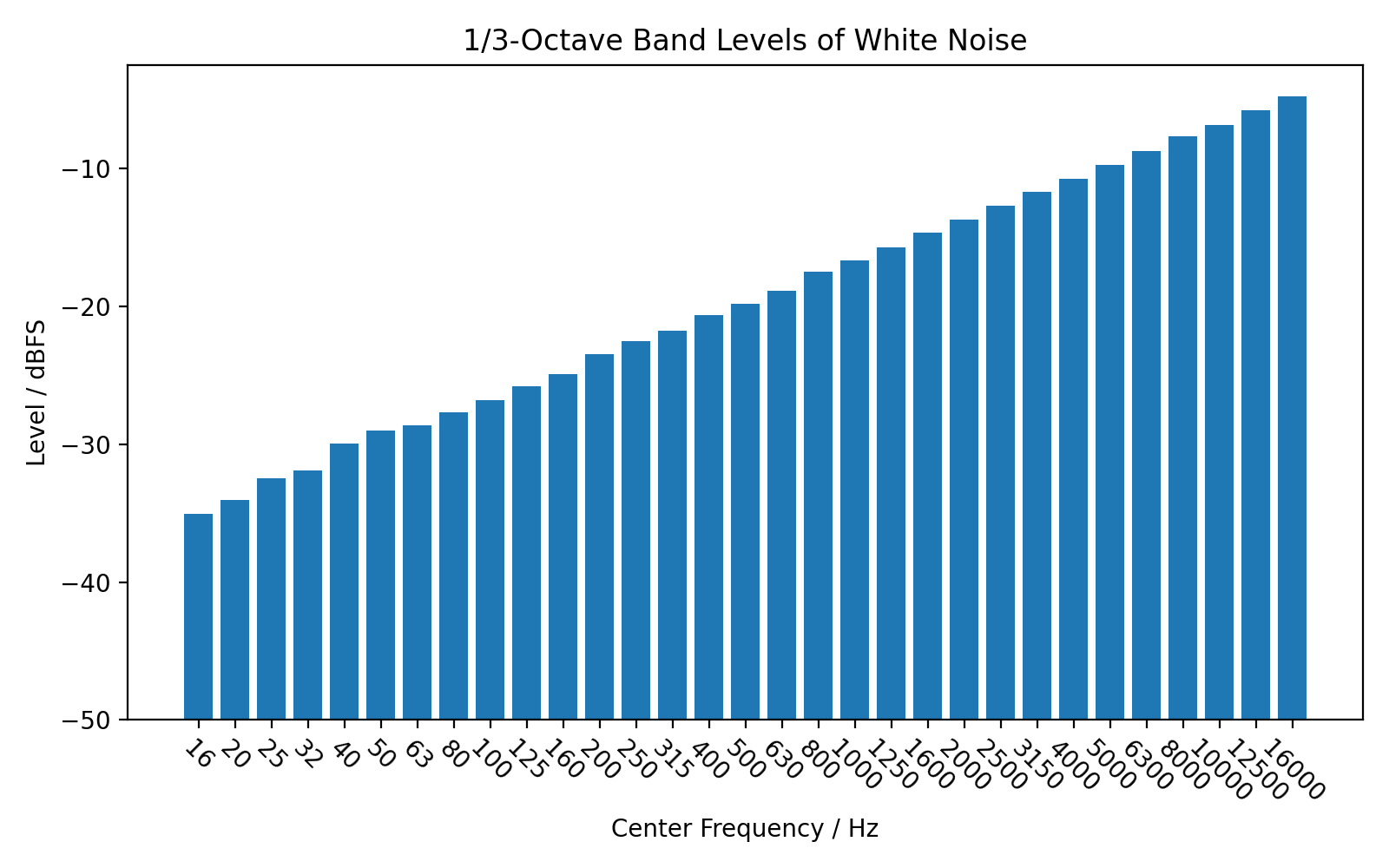

It is also possible to get the octave-band or fractional-octave-band levels of a signal.

import audiotoolbox as audio
import numpy as np
import matplotlib.pyplot as plt

# Create a pink noise signal
noise = audio.Signal(1, duration=5, fs=48000).add_noise('white')

# Calculate octave-band levels
fc, levels = noise.stats.octave_band_levels(oct_fraction=3)

base_value = -50
# Plot the results
plt.figure(figsize=(8, 5))
plt.bar(np.arange(len(fc)), levels -base_value, tick_label=np.round(fc).astype(int), bottom=base_value)
# plt.bar(np.arange(len(fc)), levels, tick_label=np.round(fc).astype(int))
plt.title('1/3-Octave Band Levels of White Noise')
plt.xlabel('Center Frequency / Hz')
plt.ylabel('Level / dBFS')
plt.xticks(rotation=-45)
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

Loading and Saving Audio Files

This section explains how to load and save signals using audiotoolbox. The Signal class provides methods for reading from and writing to audio files. The library supports all audio file formats backed by libsndfile, such as WAV, FLAC, and AIFF.

Loading Audio Files

There are two primary ways to load an audio file: creating a new Signal object directly from a file, or loading audio data into an existing Signal.

Creating a Signal from a File

The most direct way to load an audio file is to use the from_file() class method. This creates a new Signal object with the properties (channel count, sample rate) inferred from the file.

import audiotoolbox as audio

# Load the signal from "example.wav" into a new Signal object
sig = audio.Signal.from_file("example.wav")

Loading Data into an Existing Signal

You can also load audio data into a Signal object that you have already created. When doing this, the sample rate and number of channels of the file must match the existing Signal object.

import audiotoolbox as audio

# Create a Signal object
sig = audio.Signal(n_channels=2, duration=1, fs=48000)

# Load the signal from "example.wav" into the existing object
sig.from_file("example.wav")

Reading a Portion of a File

The from_file method allows you to load only a specific portion of the audio file by using the start and channels parameters.

import audiotoolbox as audio

# Create a Signal object to hold the partial data
sig = audio.Signal(n_channels=1, duration=1, fs=48000)

# Load only the first channel from "example.wav", starting at sample 1000
sig.from_file("example.wav", start=1000, channels=0)

Saving Audio Files

To save a signal, use the write_file() method. The file format is typically inferred from the file extension (e.g., .wav, .flac), but can be specified explicitly.

Save a signal to a standard WAV file:

import audiotoolbox as audio

# Create a signal
sig = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()

# Save the signal to "output.wav"
sig.write_file("output.wav")

You can pass keyword arguments to control the output format and subtype. For example, to save as a 16-bit PCM WAV file:

# Save the signal as a 16-bit PCM WAV file
sig.write_file("output.wav", format="WAV", subtype="PCM_16")

Saving to other formats like FLAC is just as easy:

# Save the signal to a FLAC file
sig.write_file("output.flac")

Determining and Setting Levels

This section provides an overview of how to determine and set signal levels using the Signal class and its stats property.

Getting Signal Statistics

All level calculations and statistics are accessed through the .stats property, which returns a SignalStats object. This provides convenient access to common metrics, calculated per channel.

Let’s create a noise signal to demonstrate:

import audiotoolbox as audio

# Create a two-channel noise signal
sig = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()

The following properties are available:

• .stats.rms: The Root-Mean-Square level of the signal.

• .stats.dbspl: The level in dB Sound Pressure Level (SPL), assuming

  the signal values are pressure in Pascals relative to 20 µPa.

• .stats.dbfs: The level in dB Full Scale, where 0 dBFS is a sine

  wave with an amplitude of 1.

• .stats.dba and .stats.dbc: A- and C-weighted SPL.

• .stats.crest_factor: The ratio of the peak amplitude to the RMS value.

# Get various level and statistical properties
rms_val = sig.stats.rms
spl_val = sig.stats.dbspl
dbfs_val = sig.stats.dbfs
crest_val = sig.stats.crest_factor

print(f"RMS: {rms_val}")
print(f"SPL: {spl_val:.2f} dB")
print(f"dBFS: {dbfs_val:.2f} dB")
print(f"Crest Factor: {crest_val:.2f} dB")

Setting and Normalizing Levels

To change a signal’s level, use the methods directly available on the Signal object.

Setting Sound Pressure Level (SPL)

The set_dbspl() method normalizes the signal to a target SPL.

# Normalize the signal to 70 dB SPL
sig.set_dbspl(70)

# The .stats.dbspl property will now reflect this new level
print(f"New SPL: {sig.stats.dbspl:.2f} dB")

Setting dBFS

Similarly, set_dbfs() normalizes the signal to a target dBFS value.

# Normalize the signal to -6 dBFS
sig.set_dbfs(-6)

print(f"New dBFS: {sig.stats.dbfs:.2f} dB")

Relative Level Adjustments

These methods can be used to set levels relatively. For example, to set one signal to a 10 dB higher level than another:

# Create two signals
sig1 = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()
sig2 = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()

# Set the level of sig1 to be 10 dB higher than sig2
sig1.set_dbfs(sig2.stats.dbfs + 10)

You can also apply this to individual channels. To set the first channel to a 5 dB lower level than the second channel:

# Set channel 0 to be 5 dB lower than channel 1
sig.ch[0].set_dbfs(sig.ch[1].stats.dbfs - 5)

Time-Frequency Methods

Spectrograms

The time-frequency submodule provides several methods of calculating spectrograms either based on short-term Fourier transforms or based on filterbanks.

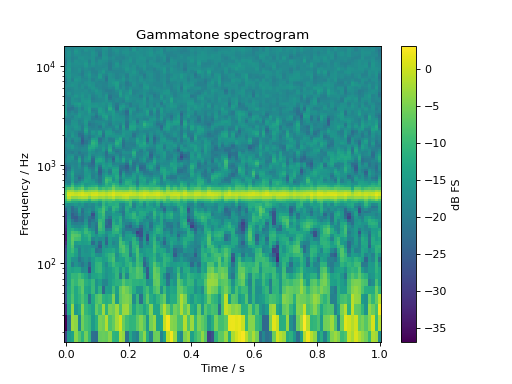

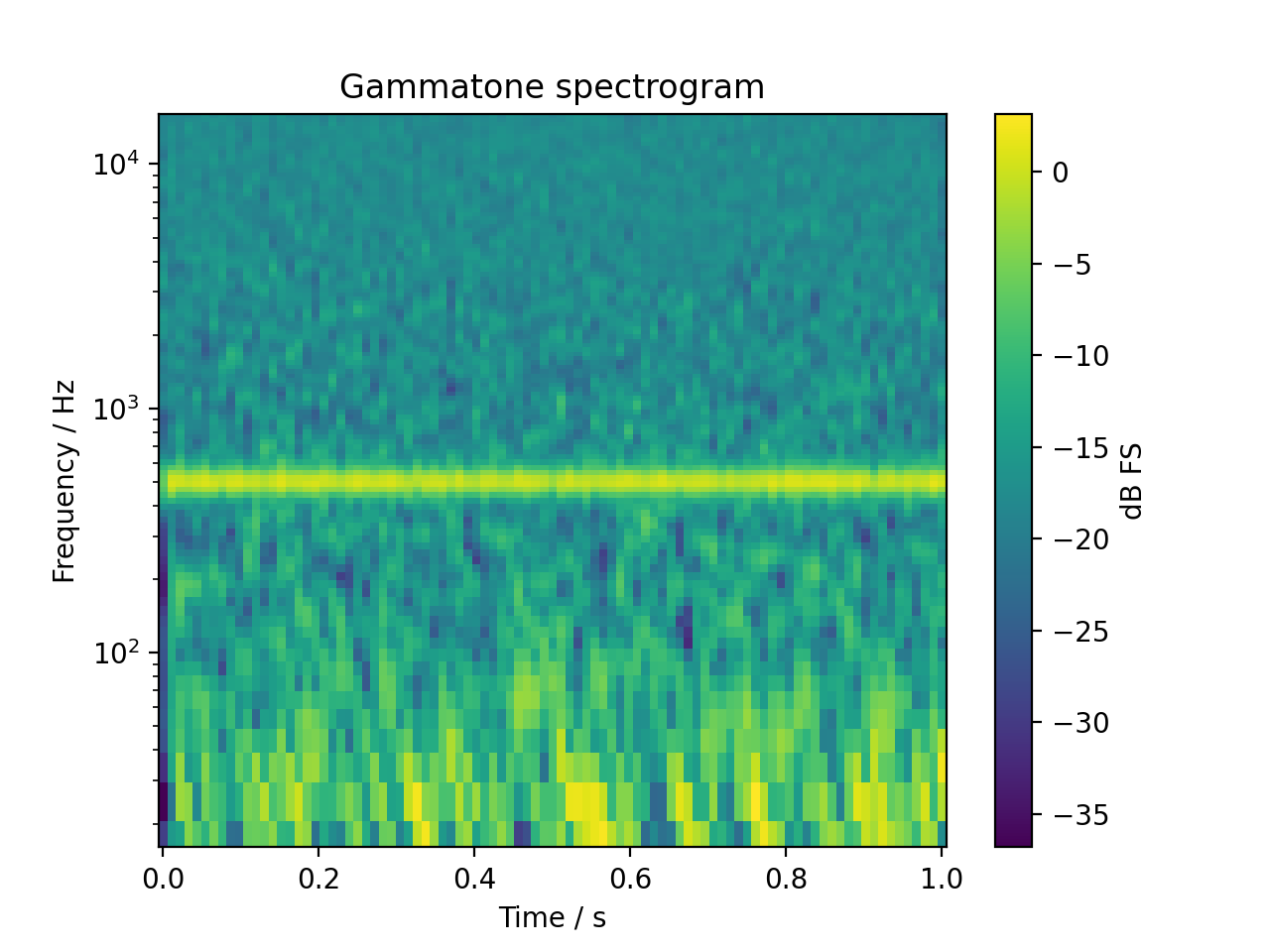

Plotting a gamma-tone filterbank (1/3 ERB spacing) based spectrogram of a 500Hz tone in pink noise:

sig = audio.Signal(1, 1, 48000)
sig.add_tone(500).set_dbfs(0)
sig.add_noise("pink")
sig.add_fade_window(10e-3)


spec, fc = sig.time_frequency.gammatone_specgram(
    nperseg=1024, noverlap=512, flow=16, fhigh=16000, step=1 / 3
)
fig, ax = plt.subplots(1, 1)
cb = ax.pcolormesh(spec.time, fc, spec.T)
ax.set_yscale("log")
ax.set_ylim(16, 16000)
ax.set_ylabel("Frequency / Hz")
ax.set_xlabel("Time / s")
ax.set_title("Gammatone spectrogram")
cb = plt.colorbar(cb, ax=ax)
cb.set_label("dB FS")
plt.show()

(Source code, png, hires.png, pdf)

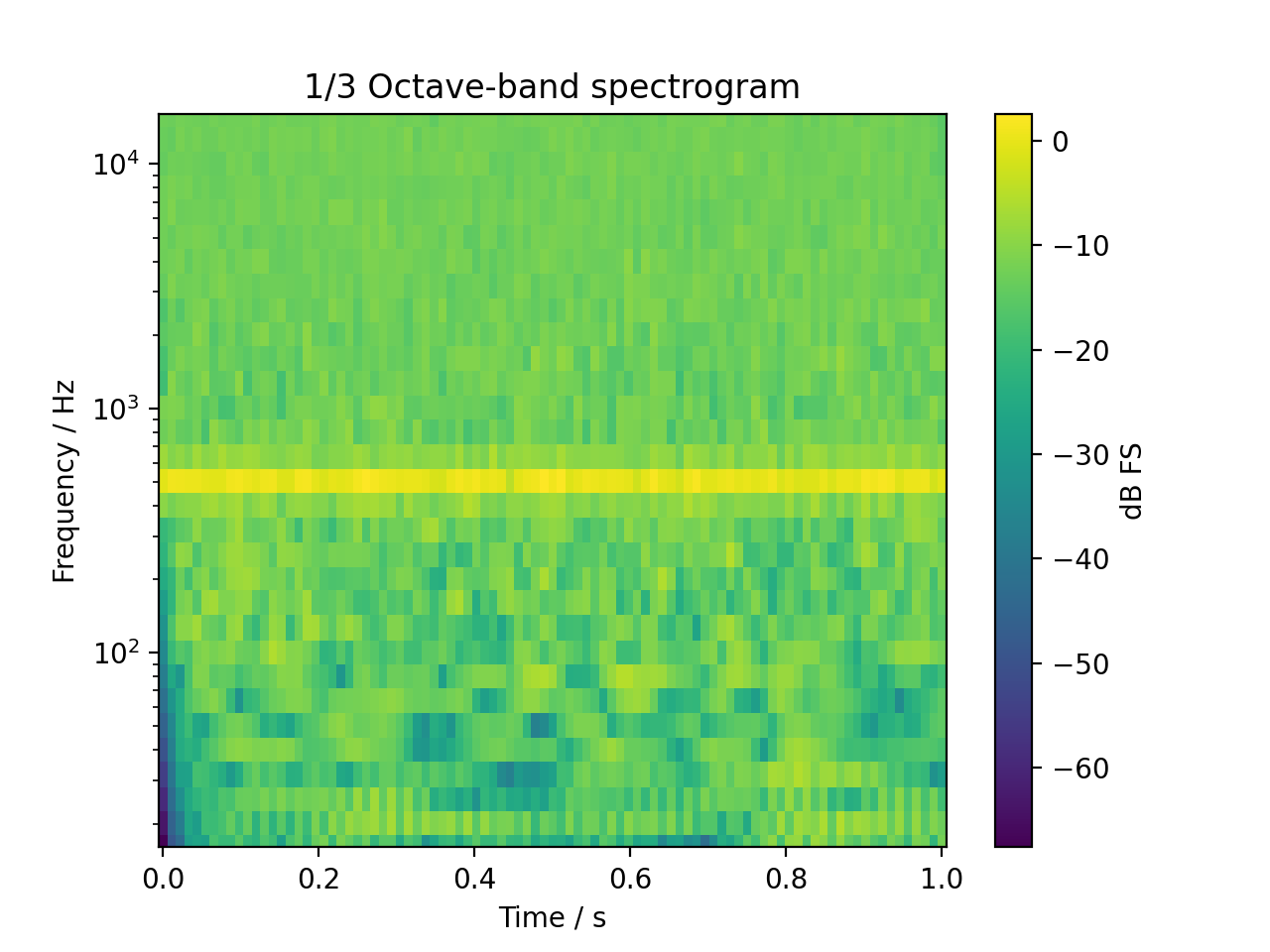

The same signal in an octave-band based spectrogram:

sig = audio.Signal(1, 1, 48000)
sig.add_tone(500).set_dbfs(0)
sig.add_noise("pink")
sig.add_fade_window(10e-3)


spec, fc = sig.time_frequency.octave_band_specgram(
    nperseg=1024, noverlap=512, flow=16, fhigh=16000
)
fig, ax = plt.subplots(1, 1)
cb = ax.pcolormesh(spec.time, fc, spec.T)
ax.set_yscale("log")
ax.set_ylim(16, 16000)
ax.set_ylabel("Frequency / Hz")
ax.set_xlabel("Time / s")
ax.set_title("1/3 Octave-band spectrogram")
cb = plt.colorbar(cb, ax=ax)
cb.set_label("dB FS")
plt.show()

(Source code, png, hires.png, pdf)

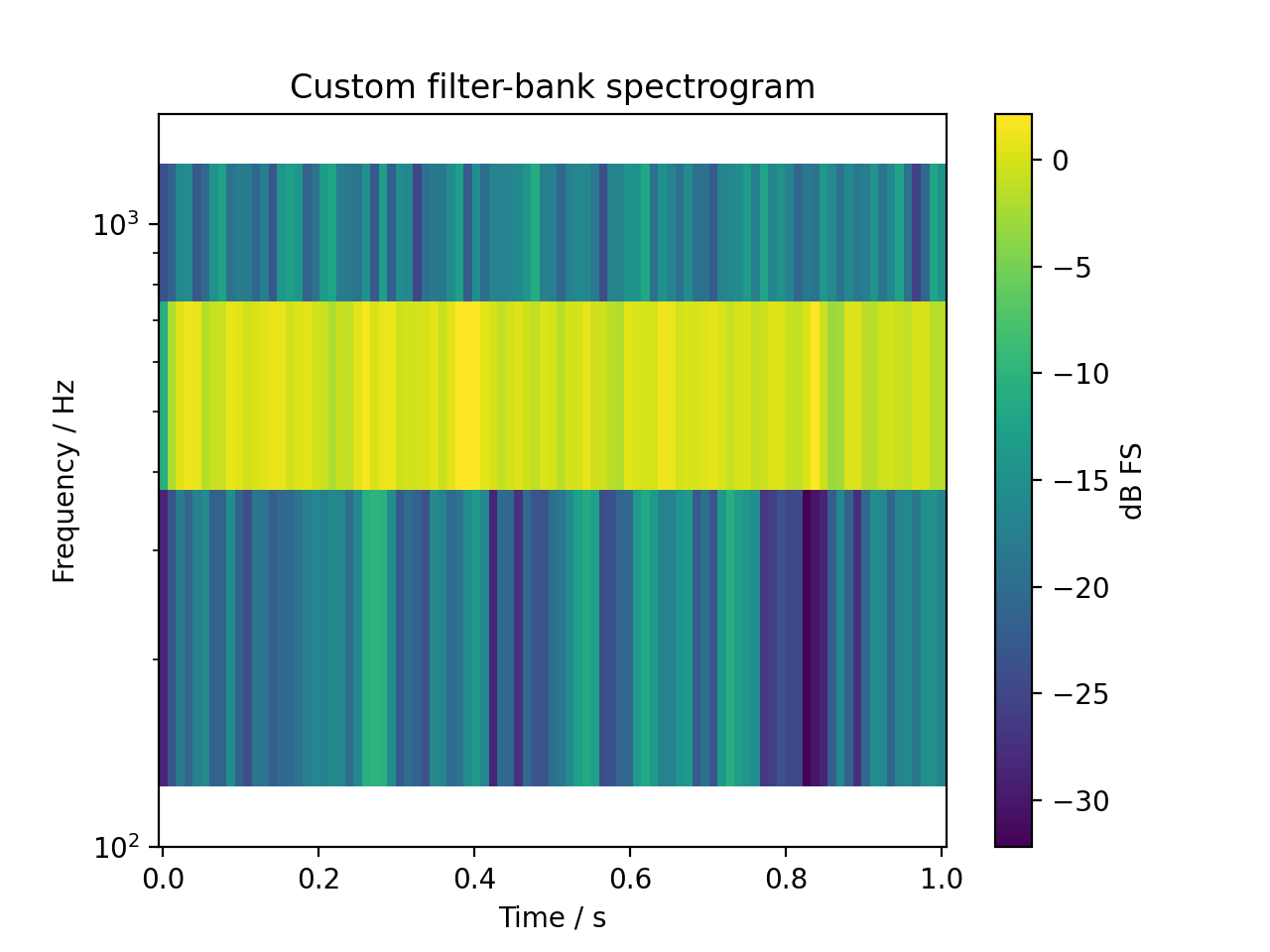

It’s also possible to create spectrograms based on custom filter-banks

sig = audio.Signal(1, 1, 48000)
sig.add_tone(500).set_dbfs(0)
sig.add_noise("pink")
sig.add_fade_window(10e-3)

bank = audio.filter.bank.create_filterbank(fc=[250, 500, 1000], bw=[25, 50, 100], filter_type="butter", fs=sig.fs)


spec, fc = sig.time_frequency.filterbank_specgram(bank=bank,
    nperseg=1024, noverlap=512
)
fig, ax = plt.subplots(1, 1)
cb = ax.pcolormesh(spec.time, fc, spec.T)
ax.set_yscale("log")
ax.set_ylim(100, 1500)
ax.set_ylabel("Frequency / Hz")
ax.set_xlabel("Time / s")
ax.set_title("Custom filter-bank spectrogram")
cb = plt.colorbar(cb, ax=ax)
cb.set_label("dB FS")
plt.show()

(Source code, png, hires.png, pdf)

Filtering

The audiotoolbox library provides access to commonly used filters as well as the option to generate and apply filterbanks.

Applying Filters to Signals

The easiest way to filter a signal is to use the methods directly available on the Signal object. This provides a unified, fluent interface for low-pass, high-pass, and band-pass filtering.

• lowpass()

• highpass()

• bandpass()

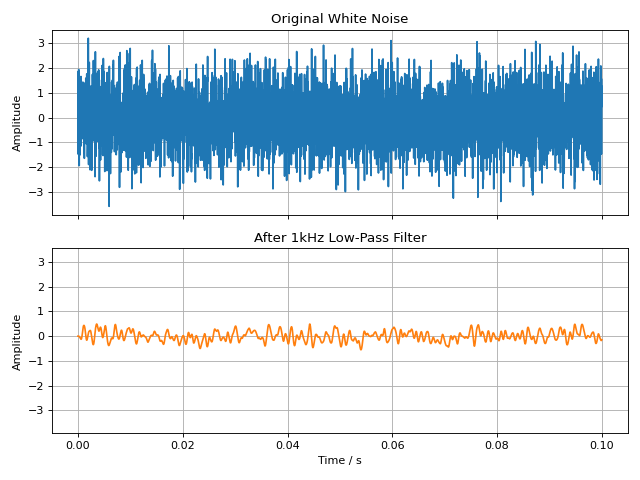

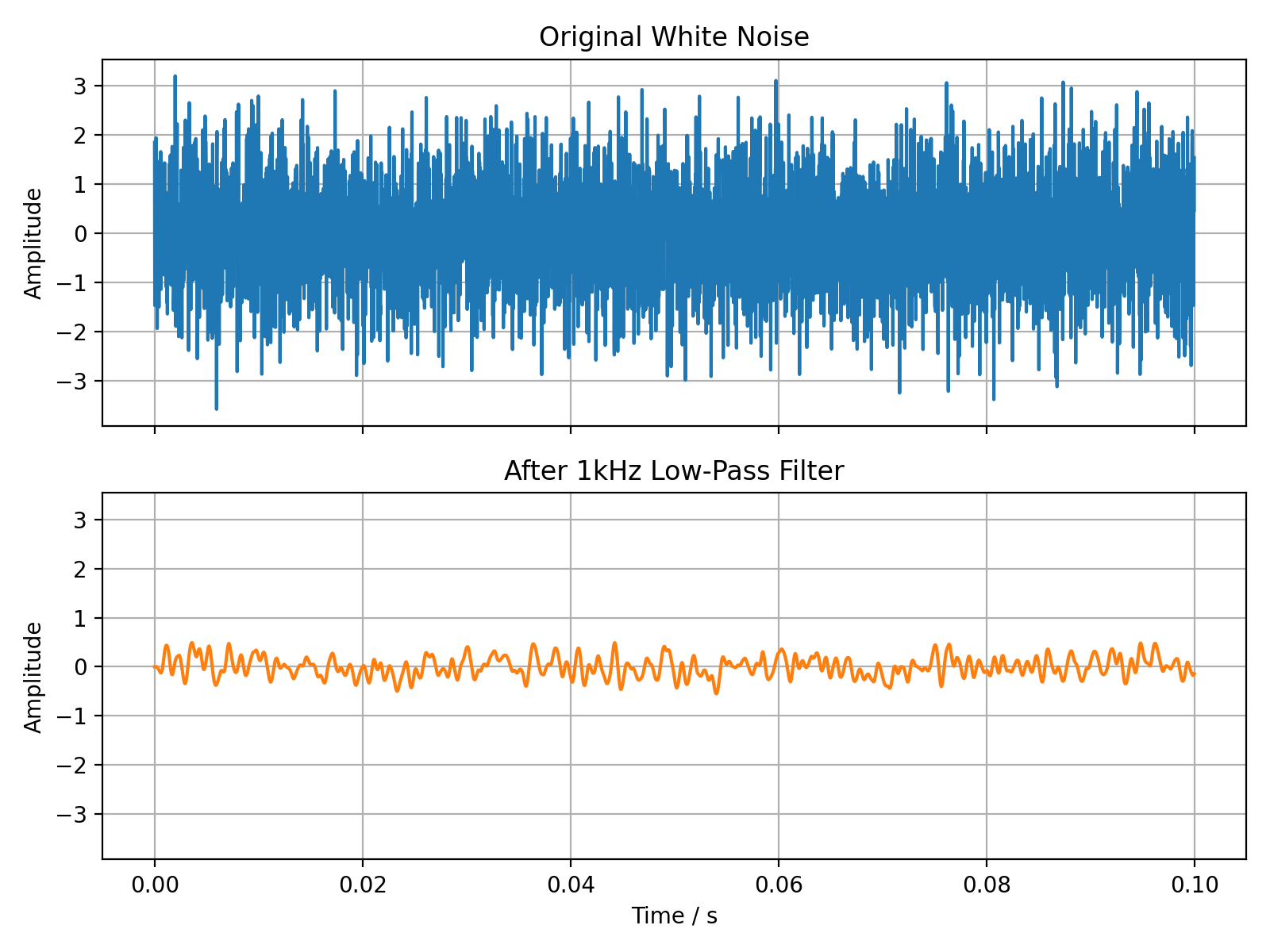

The following example demonstrates applying a low-pass filter to a white noise signal.

import audiotoolbox as audio
import matplotlib.pyplot as plt
import numpy as np

# Create a white noise signal
sig = audio.Signal(n_channels=1, duration=100e-3, fs=48000).add_noise('white')

# Create a low-passed version of the signal
# A copy is made so the original signal is not modified
lp_sig = sig.copy().lowpass(f_cut=1000, filter_type='butter', order=4)

# Plot the original and filtered signals
fig, ax = plt.subplots(2, 1, sharex=True, sharey=True, figsize=(8, 6))
ax[0].plot(sig.time, sig, label='Original')
ax[0].set_title('Original White Noise')
ax[0].grid(True)

ax[1].plot(lp_sig.time, lp_sig, label='Filtered', color='C1')
ax[1].set_title('After 1kHz Low-Pass Filter')
ax[1].set_xlabel('Time / s')
ax[1].grid(True)

for a in ax:
    a.set_ylabel('Amplitude')

plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

Filter Functions

For more direct control, you can also use the filter functions available in the audiotoolbox.filter submodule. These functions take a signal as their first argument.

The following filters are available:

• butterworth(): A Butterworth filter.

• brickwall(): A brickwall (ideal) filter implemented in the frequency domain.

• gammatone(): A (complex-valued) gammatone filter.

import audiotoolbox as audio

sig = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()

# Apply a 3rd-order Butterworth low-pass filter
filt_sig = audio.filter.butterworth(sig, high_f=1000, order=3)

Filterbanks

audiotoolbox provides two commonly used standard filterbanks and allows for the creation of custom banks.

Standard Filterbanks

The following standard filterbanks are available:

1. octave_bank(): A (fractional) octave filterbank.

2. auditory_gamma_bank(): An auditory gammatone filterbank.

A 1/3-octave filterbank can be generated as follows:

import audiotoolbox as audio

bank = audio.filter.bank.octave_bank(
    fs=48000, flow=25, fhigh=20000, oct_fraction=3
)

# The .fc property contains the center frequencies
print(bank.fc)

Applying a Filterbank

A filterbank can be applied to a signal using its filt() method. This returns a multi-channel signal where each channel corresponds to the output of one filter in the bank.

sig = audio.Signal(n_channels=2, duration=1, fs=48000).add_noise()

# Filter the signal with the entire bank
filt_sig = bank.filt(sig)

# The output has shape (n_samples, n_original_channels, n_filters)
print(f"Shape of filtered signal: {filt_sig.shape}")

You can also index the filterbank to apply only a subset of filters:

# Apply only the 10th through 15th filters of the bank
filt_sig_partial = bank[10:15].filt(sig)
print(f"Shape of partially filtered signal: {filt_sig_partial.shape}")

Custom Filterbanks

The create_filterbank() function can be used to create custom filterbanks from any of the available filter types.

import audiotoolbox as audio
import numpy as np

# Define center frequencies and bandwidths
fc_vec = np.array([100, 200, 300])
bw_vec = np.array([10, 20, 30])

# Create a custom brickwall filterbank
custom_bank = audio.filter.bank.create_filterbank(
    fc=fc_vec, bw=bw_vec, filter_type='brickwall', fs=48000
)

Frequency Weighting Filters

audiotoolbox implements A- and C-weighting filters following the IEC 61672-1 standard. While the weighted levels can be accessed directly via the stats property (e.g., sig.stats.dba), the filters can also be applied directly.

• a_weighting()

• c_weighting()

noise = audio.Signal(n_channels=1, duration=1, fs=48000).add_noise('pink')

# Apply A-weighting filter
a_weighted_noise = audio.filter.a_weighting(noise)
